SERVICE 01 / 10 In-house

CNC Routing

Nested parts out of acrylic, PVC, MDF, aluminium and composite panel — cut on a 5×10 vacuum bed with the tool library and program file kept on record for every repeat run.

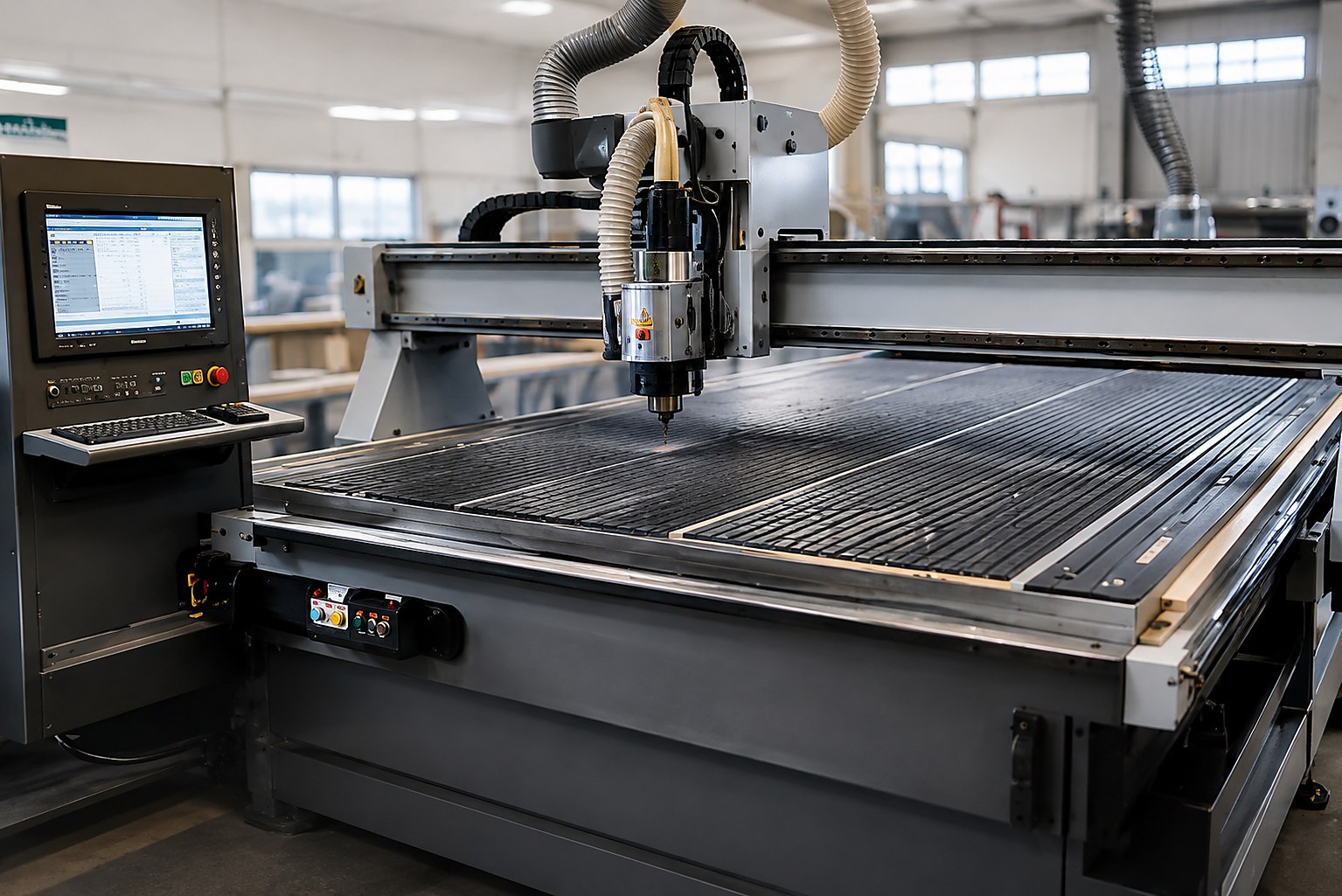

CNC Routing
60 × 120 in
Max sheet size
±0.010 in
Typical tolerance
0
Vacuum-bed router
0
Typical lead time
What it is good for

Flat parts, repeatable, in any quantity.

Routing is where most of our display and award work starts. Anything that begins as a sheet — a display panel, an award face, a kiosk panel, a shadow box back — gets nested and cut here before it goes to forming, printing or polishing.

Because the program file and tooling stay on record, run two of a program looks identical to run one and skips setup. That is usually where the reorder savings come from.

Typical parts
  • Display panels and shelf risers
  • Award faces and bases
  • Kiosk and fixture panels
  • Shadow box backs and liners
  • Signage faces and dimensional letters
Materials & limits

What we cut, and how thick.

Material Thickness Edge quality
Cast acrylic 0.06 – 1.00 in Machine, flame or diamond polish
PVC / Komatex 1 – 25 mm Clean, paint-ready
Aluminium 5052 0.040 – 0.250 in Deburred, brushed on request
Baltic birch ply 6 – 18 mm Sanded, sealed or laminated
MDF & composite panel 6 – 30 mm Primer-ready, v-groove capable
How it runs

File to finished part.

01

File check and nesting

We open your DXF, DWG or STEP, confirm closed geometry and tool clearance, then nest for yield. If a radius will not cut, you hear about it before we quote.

02

Sample cut

On a new part we cut one and check it against print before committing the sheet. On a repeat we pull the saved program and go straight to run.

03

Production run

Cut, deburr and edge-finish, with in-process dimensional checks logged against the first article.

04

Straight into the next process

Parts move internally to print, polishing or kitting. No crating, no freight, no second vendor's schedule.

Custom cut parts

Cut on our routers.

Clear acrylic award body, routed and polished, on the router table
Clear acrylic award body, routed and polished, on the router table
A run of thick acrylic blanks straight off the router, before finishing
A run of thick acrylic blanks straight off the router, before finishing
Routed award bodies painted and masked, ready for the next step
Routed award bodies painted and masked, ready for the next step
Puzzle-piece milestone award, routed and engraved in one piece
Puzzle-piece milestone award, routed and engraved in one piece
Layered tinted-acrylic award, each layer cut to fit
Layered tinted-acrylic award, each layer cut to fit
Script letter cut to shape, finished in gold, on a matching base
Script letter cut to shape, finished in gold, on a matching base
Interlocking frame pieces cut to shape, masking still on
Interlocking frame pieces cut to shape, masking still on
Our MultiCam 3000 router with a full 5×10 sheet loaded on the vacuum bed
Our MultiCam 3000 router with a full 5×10 sheet loaded on the vacuum bed
MultiCam 3000 gantry and control pendant, ready for the next nested run
MultiCam 3000 gantry and control pendant, ready for the next nested run
Common questions

Do you need a CAD file?

Preferred, but a dimensioned sketch or a sample part works. We will draw it and send the file back with the quote.

What is the minimum order?

One. Prototypes run alongside production, usually within the same week for stocked material.

Can you hold tighter than ±0.010 in?

On specific features, yes — tell us which ones and we will fixture for it rather than pricing the whole part tight.

Get a routed part quoted today.

Upload the file, tell us quantity and finish, and an estimator replies by the next business day.
